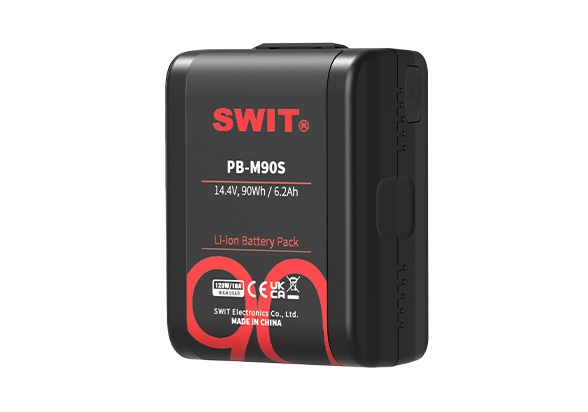

PB-M90S 90Wh Pocket V-mount Battery Pack

› Tiny V-mount battery, Pocket fit

› 90Wh/6.25Ah fly-friendly capacity

› 120W/10A constant high load

› 1x D-tap output & charging input

› 5-step LED power indicator

› Wire-Free internal technic

› Multiple circuit protections


Features

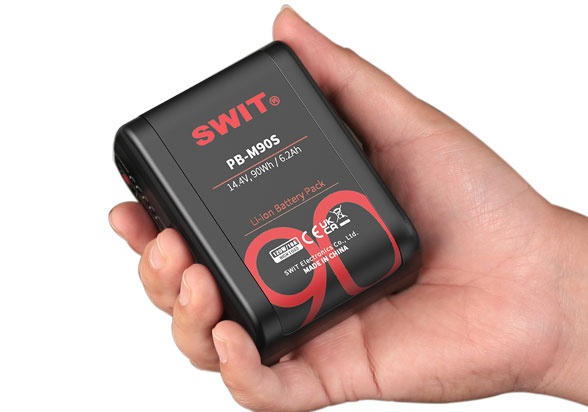

Tiny V-mount Battery

Pocket fit size

A tiny size V-mount battery designed for small cine cameras, handheld stabilizers, focus puller monitors, LED lights, etc, with high capacity and high load cells, and D-tap sockets.

90Wh Fly Friendly

120W/10A constant high load

PB-M90S consists of 8pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 90Wh / 6.25Ah high capacity. You can take this battery in carry-on luggage to board airplane.
The constant load is as high as 120W, 10A, applicable for high power devices.

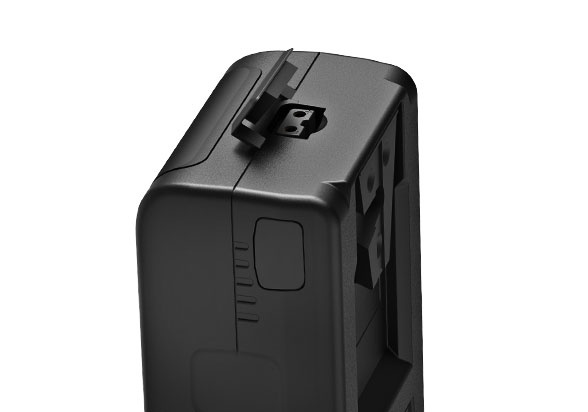

Built-in D-tap sockets

The pocket size PB-M90S has a D-tap DC socket of 120W/10A high load, and support charging input by SWIT PC-U130B2 dual D-tap charger.

5-LED Power Indicator

Low battery warning

PB-M90S has 5-LEDs to indicator remaining power percentage. When remaining power is less than 10%, the last LED will flash automatically to remind changing battery.

3A Fast Charging

PB-M90S can be charged by all standard V-mount chargers and D-tap chargers. Max charging current is 3A.
The following chargers are recommended:
1. S-3822S, Portable 2-ch Simultaneous Charger
Charge 2x PB-M98S: Approx. 3 hours
2. PC-U130B2, Ultra-Portable Dual D-tap head charger
Charge 1x PB-M98S: Approx. 3 hours
Charge 2x PB-M98S: Approx. 5 hours

Hot-Swap Adaptor

You can use 2x PB-M90S hot-swapable on cameras, by the Hot-swap Adaptor KA-M20S, to get a long time, uninterrupted power, and equivalent to a standard size V-mount battery.

Wire-Free Internal Tech

PB-M90S has innovative “Wire-Free” internal technic. All the cells, D-tap, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.

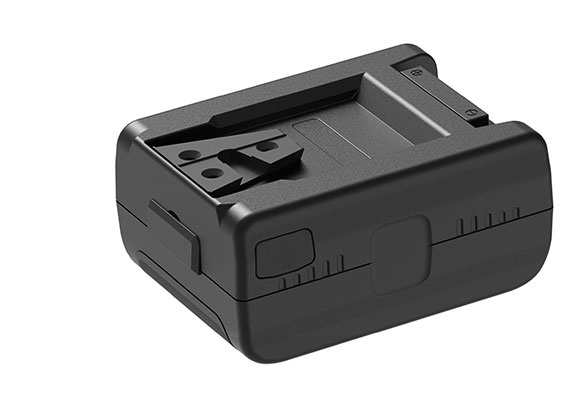

Battery plate

V-mount

Nominal voltage

14.4V

Capacity

90Wh, 6.25Ah

Max output

In total: 120W

Electrodes: 120W, 10A

D-tap: 120W / 10A

Dimension

100×74×48mm

      Charging Temperature0-40°C
      Discharging Temperature

-20°C-50°C (Capacity and Max Load may decrease when operating below 0°)

Net weight

0.51kg

Max charging current

3A
