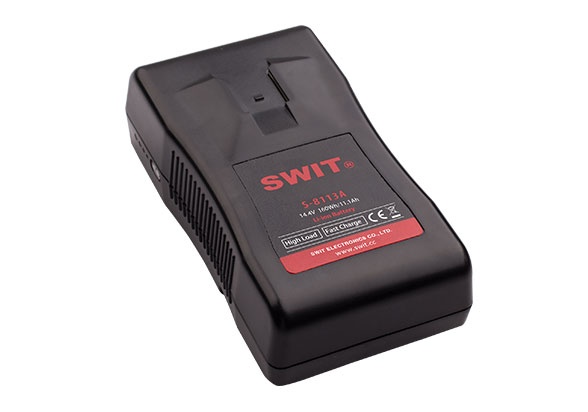

Adopt High-Load Li-ion Cells

Max 250W, 20A constant power output Perfect for high draw power application

Normal Li-ion batteries offer 100W/8A output and suit- able for most ENG cameras, but the Cine Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be reduced if long time full draw powering. Moreover, if there’re monitor, lighting work together, and total power will be above 100W, and the normal batteries can not draw completely.
Using S-8183A high-load battery, you can get MAX 250W/20A constant power output, which can drive more high power cameras, lightings and other equipments easily, and won’t reduce battery life during long time high power output.

240Wh / 16.7Ah High Capacity

Consists of 24pcs 18650 battery cells, and reaches 240Wh / 16.7Ah high capacity.
Can run approx 8 hours for normal 30W ENG cameras; and approx 2.5 hours for ARRI Alexa camera

6A Fast Charging

S-8183A supports 6A fast charging, to save more than 50% charging time, can be charged from 0 to 80% after 2.5 hours, and fully charged within 3.8 hours.

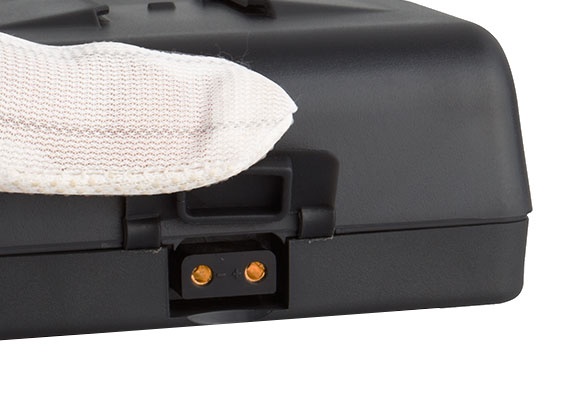

Build-in D-tap DC Output Socket

A D-tap DC output socket is equipped on the top side of S-8183A battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc.
The Max Power from D-tap is 120W, 10A.

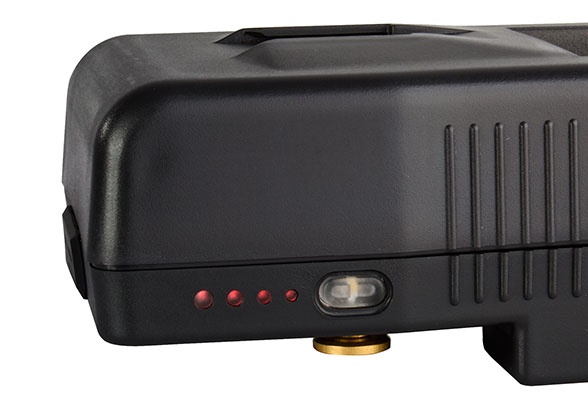

4-level LED Power Indicator

On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.
