› Portable 3G/HD/SD-SDI to HDMI Converter
› 1 SDI input, 1 HDMI output, and 1 SDI loop output
› SDI audio output via 3.5mm socket
› Embed SDI audio to HDMI output
› Power/input/output status indicator
› Pole-tap 6-18V DC power input
› Heavy duty aluminium housing
› Bottom screw threads for installing

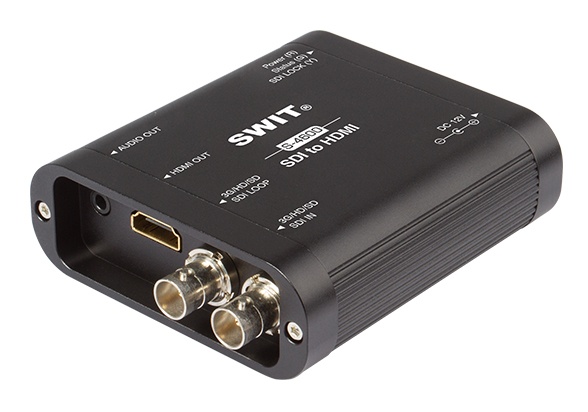

Portable Mini Converter
SDI to HDMI

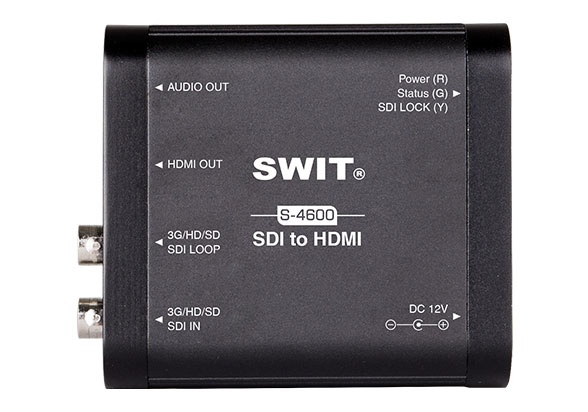

S-4600 is a mini converter for SDI to HDMI
conversion, widely used on HDMI televisions,
LED screens, projectors to display up to 3Gb/s
broadcast SDI videos.

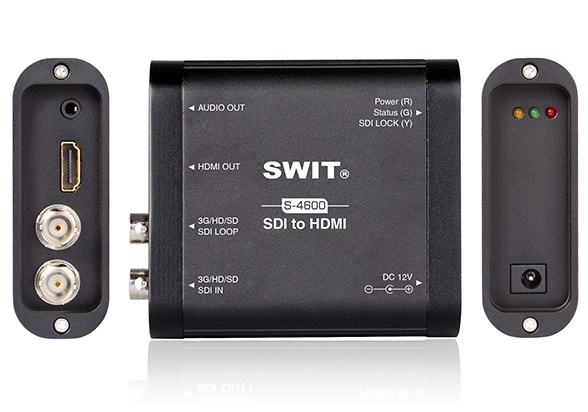

Input & Output
S-4600 offers:
1× 3G/HD/SD-SDI input
1× 3G/HD/SD-SDI loop output (Reclocked)
1× HDMI Type-A output
1× 3.5mm audio output
(The SDI to HDMI supports the same
format conversion only.)
SDI Embedded Audio Converting and Monitoring
The SDI embedded audio ch-1 &
ch-2 can be converted into HDMI
and output via 3.5mm
headphone socket, and support
48kHz sample rate.
Status Indicators
Power / Input / Output
S-4600 provides 3 LED indictors, to
check if the power is connected, and if
the input/output signal is delivered.
Power Supply
The mini converter is powered by pole-tap DC socket. The package includes an
AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.
Heavy Duty Housing
The S-4600 mini converter adopts uni-
body aluminium alloy housing, strong for
field using and protects the BNC connec-
tors effectively.
Installation

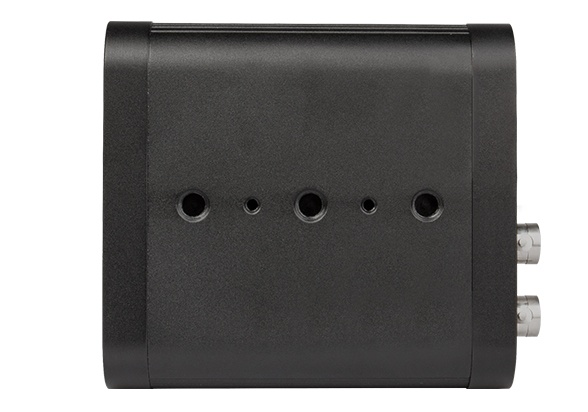

S-4600 provides the bottom 1/4-inch screw threads for fixing on cameras, and an
installing plate A-IP00 is supplied in the package, for fixing on wall and binding the
BNC/HDMI cables.
Input
BNC ×1 | 3G/HD/SD-SDI input |
Output
BNC ×1 | 3G/HD/SD-SDI loop output |
HDMI ×1 | Converted HDMI output |
3.5mm ×1 | SDI audio output |
Video Format
SDI | 1080p (60 / 59.94 / 50) |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
HDMI | 1080p (60/ 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
| 480i / 576i | |
Audio | 48KHz Sync |
General
Power | ≤3W |
Working Voltage | DC 6-18V |
Working Environment | Temperature: 0°C-+70°C, Humidity:10%-90% |
Dimensions | 98×84×29 mm |
Net weight | 200g |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-

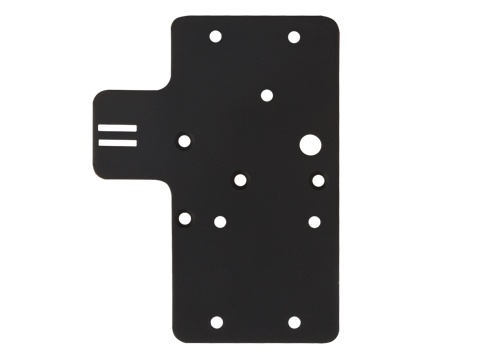

Installation plate
-

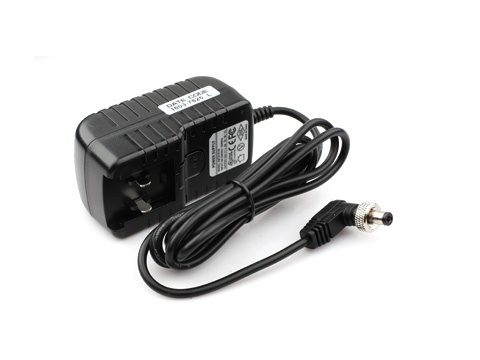

AC-DC Adaptor
