› 4-ch simultaneous charging
› 2A charging current per channel
› Snap-on exchangeable DV plates
› Mixed types of DV batteries charging
› U/F/D/B/C/I/V/E plates supported
› 4-LED charging indicators

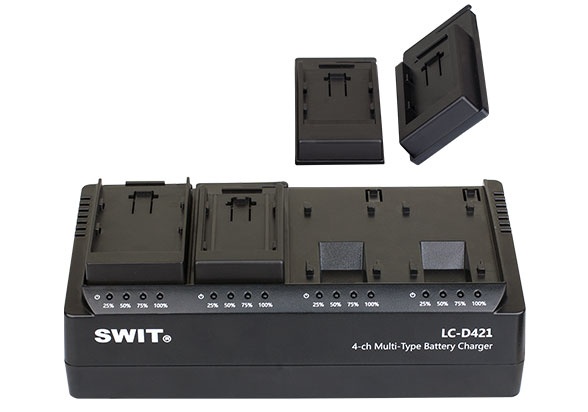

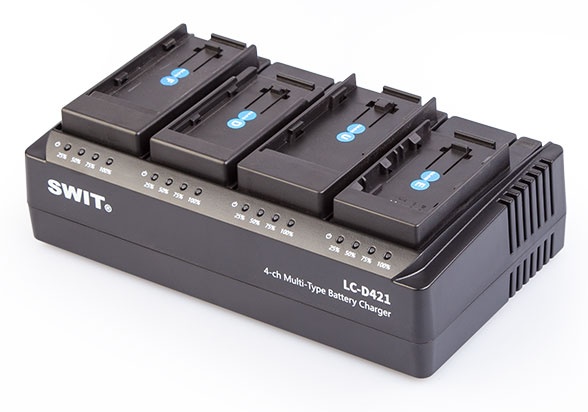

4-channel DV Charger
2A per channel

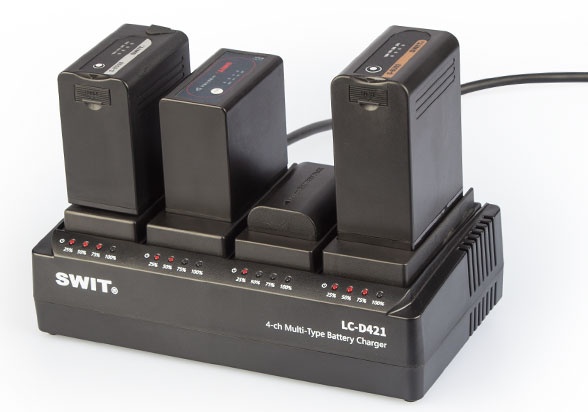

LC-D421 can charge 4 DV batteries simultaneously,
with 2A charging current per channel. Users can
exchange different types of battery plate to charge
different types of DV batteries together.

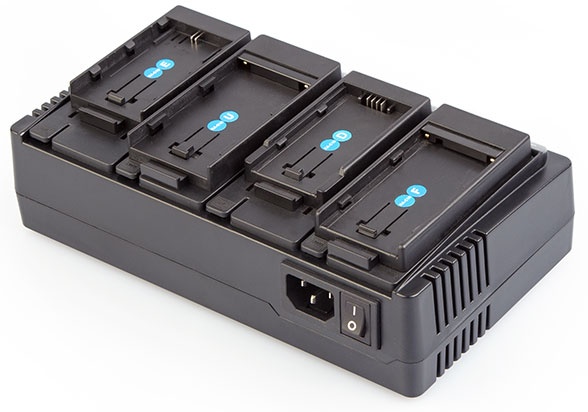

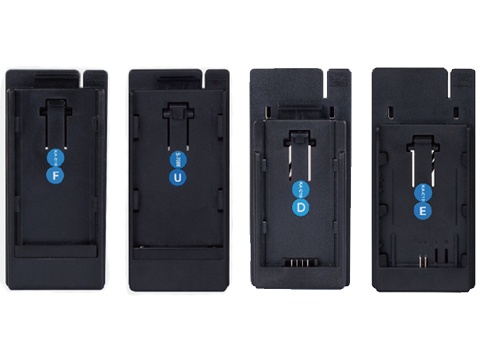

Exchangeable DV Plates
You can select the following snap-on quick exchangeable DV
plates to mount on LC-D421, to charge different batteries:
KA-C10U: SONY BP-U type
KA-C10F : SONY NP-F type
KA-C10D : Panasonic CGA, AG-VBR59
KA-C10B : Panasonic VW-VBG6
KA-C10C: Canon BP-945 type
KA-C10I: SSL-JVC50 type
KA-C10V : JVC BN-VF823 type
KA-C10E : Canon LP-E6
LED Charging Indicators
LC-D421 charger has 4-LED indicators for
each charging channel, and display the re-
al-time battery capacity level.
In case of the 4 LEDs are all flashing or all
off, please check the connection condition
of the batteries and plates, and restart the
charger.
Input | 100～240VA, 50/60Hz |
Power consumption | power 100W |
Charging output | DC 8.4V, Max 2A×4-ch |
Working temperature | 0°C～+40°C |
Working humidity | 10%～90% |
Dimensions | 220mm×125mm×69.3mm |
Net weight | Approx. 706g |
MSRP
$8222
MSRP
$8222
MSRP
$8222
-
KA-C10 Plate x4 (U/F/D/B/V/I/C/E Selection)
-

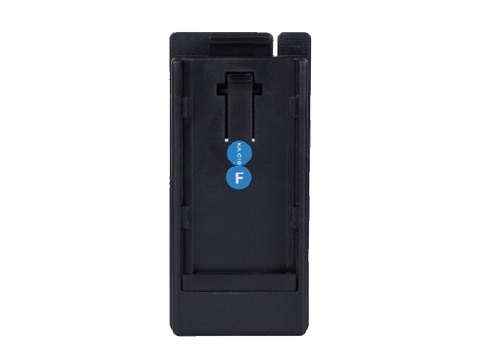

KA-C10F
SONY NP-F DV Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable. -

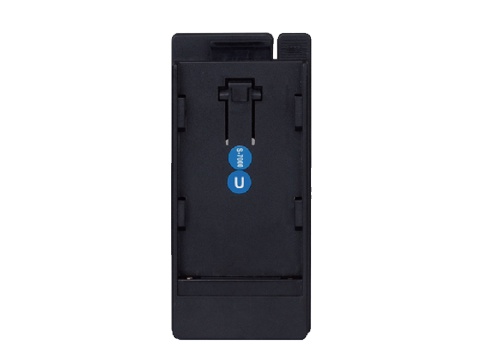

KA-C10U
SONY BP-U DV Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable. -

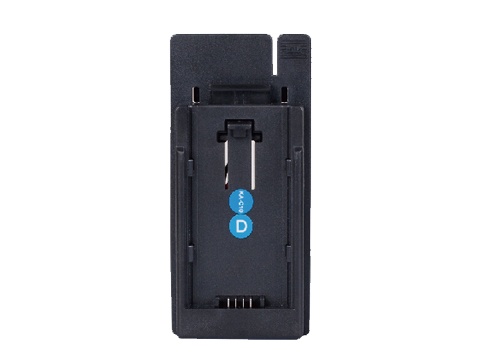

KA-C10D
Panasonic CGA/VBD DV Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable. -

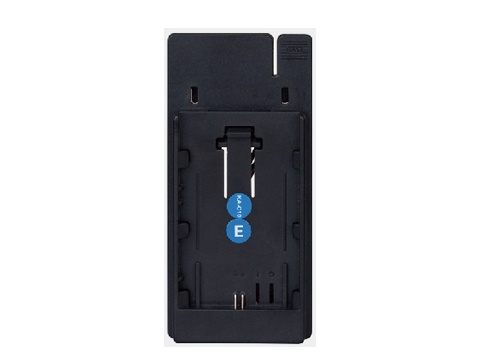

KA-C10E
Canon DSLR Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable. -

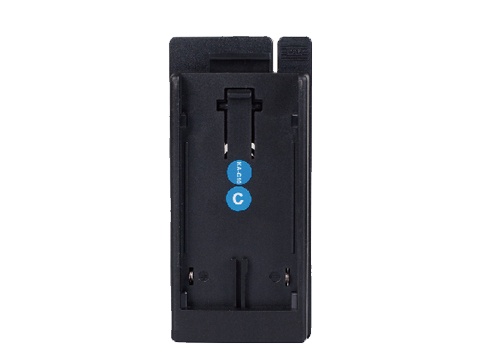

KA-C10C
Canon BP DV Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable. -

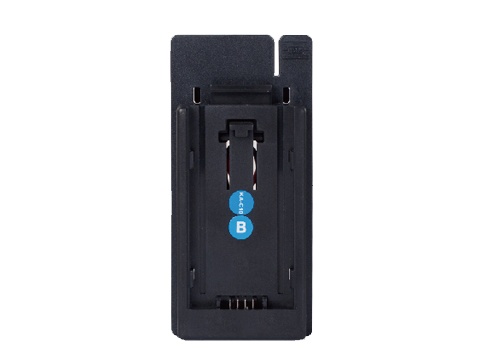

KA-C10B
Panasonic VBG DV Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable. -

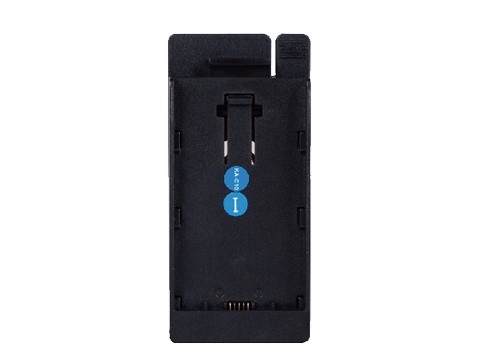

KA-C10i
JVC SSL DV Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable. -

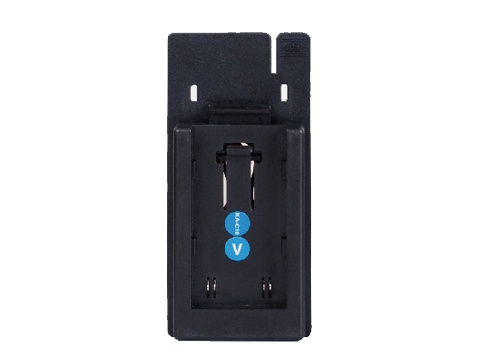

KA-C10V
JVC BN-VF DV Battery Mount Plate, Snap-on type installation, 2-pin cable plug-into LC-D421 charger, quick release and exchangeable.
