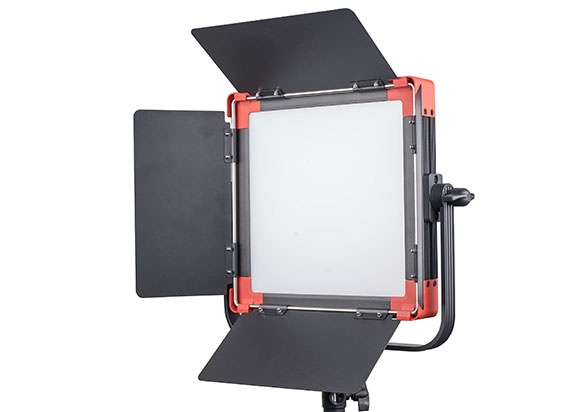

S-2440C 50W Bi-color SMD Studio Panel LED light

›  576pcs ultra bright long-life LEDs

›  Surface mounted LED technology

›  70° wide beam angle with diffuser

›  3200K-5600K continuously adjustable

›  50W power, 1250Lux @ 1meter

›  10%-100% flick-free dimming

›  Super high CRI Ra 96, TLCI 97

›  DMX512 controlled color and dimmer

›  LCD display color and dimmer value

›  Power by V-mount battery or AC-DC adaptor

›  4-leaf metal barn doors

›  Strong all-metal housing

›  U-shape support and lighting tripod mount


576pcs Surface Mounted LEDs

Area light, soft and glareless

S-2440C is a studio panel LED light, with surface mounted LED technology, includes 576pcs ultra bright LEDs. The build-in diffuser generates an equally spread area light of 70° effective wide beam angle, which is an ideal light source for broadcast studio and field video productions.


Bi-color temperature

3200K-5600K continuously adjustable

S-2440C alternated with 5600K and 3200K LEDs, and the output color temperature can be continuously adjustable between 3200K and 5600K.


1250 Lux @ 1 meter

10-100% flick-free dimming

S-2440C outputs 50W power, feeds 1250Lux luminance at 1 meter distance (center), supports 10% to 100% PWM digital dimming, smoothly and non-flickering.

High Color Reveal Ability

CRI Ra 96; TLCI 97

CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor. Max value 100. The normal LED light has 80-85 CRI or TLCI, while S-2440C offers the super high CRI at 96 and TLCI at 97, and will not lose the object original colors.

DMX512 Control

Dimmer and Color temperature

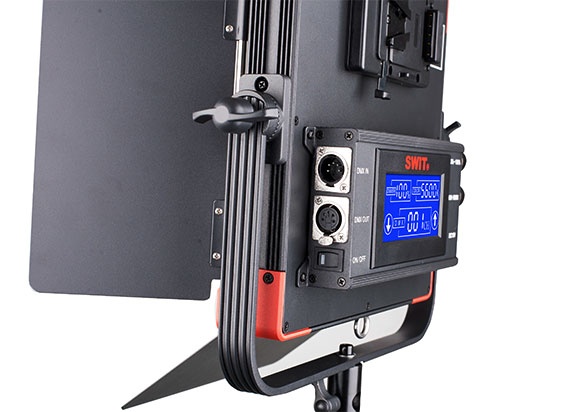

S-2440C adopts standard 5-pin DMX in/out port, supports DMX512 protocol, and adjusts dimmer and color temperature by DMX controller.
The dimmer and color temperature occupy 1 DMX address respectively.

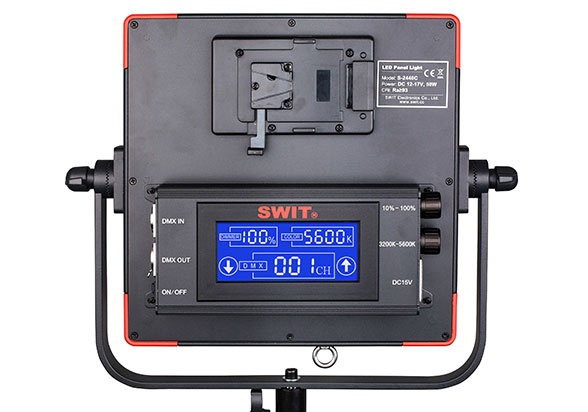

LCD screen display

Dimmer / color temperature value, DMX address

The rear LCD screen can display the current dimmer percentage, color temperature value, and supports touch control to set DMX address.


DC 12-17V Power Supply

By V-mount battery / AC-DC adaptor

S-2440C supports 12-17V 4-pin XLR DC input, and equipped with a battery plate to power by V-mount battery, or powered by AC-DC adaptor.
The AC-DC adaptor is supplied with a V-wedge, so that you can fix the adaptor onto V-mount plate of the light.

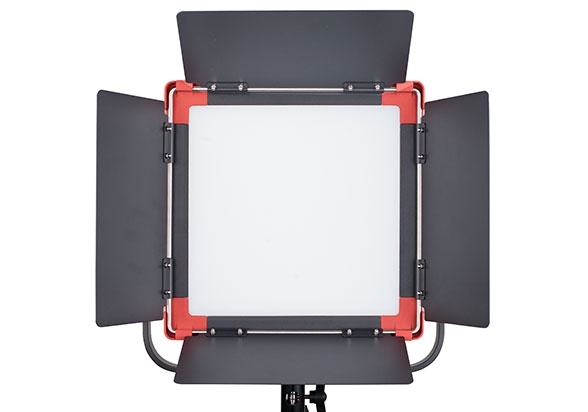

4-leaf Metal Barn Door

Easy to disassemble

S-2440C has all-metal housing, and equipped with a 4-leaf metal barn door, snap on install, and easy to disassemble.

U-shape Bracket

Dual security rope

S-2440C supplied with a U-shape bracket for lighting tripod install or celling hanging install. The product package provides 2x steel security rope for both light body and U-shape bracket.


576pcs SMD LEDs


1250Lux @ 1m

Beam angle

70°(50% bounded)

Color Temperature

5600K±300K ~ 3200K±200K







Working voltage




Lighting area



Basic Package

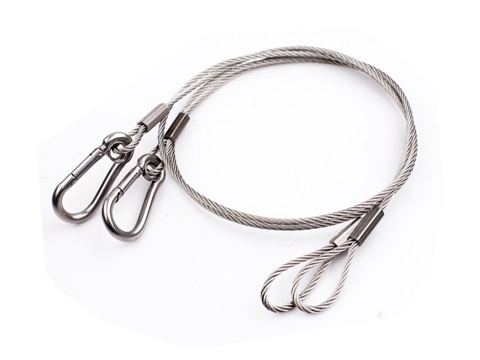

  • Safety Rope x2

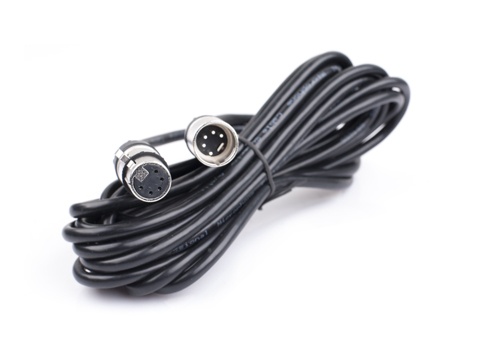

  • 5-pin DMX cable

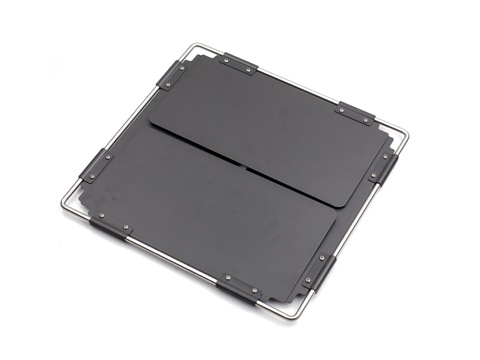

  • Barn door kit

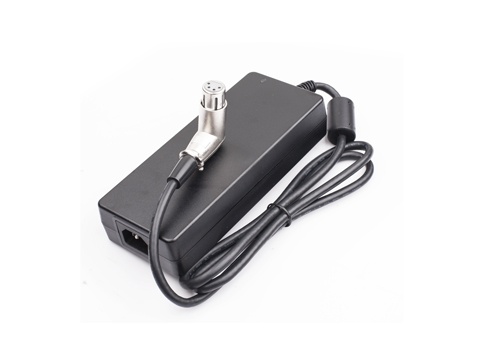

  • AC-DC Adaptor

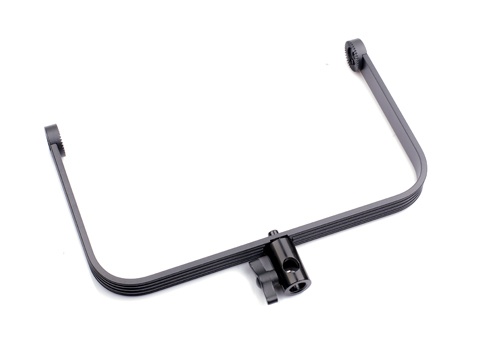

  • U bracket

  • S-2430C

    100W Bi-color SMD Studio Panel LED light

    1152 bright SMD LEDs, equally spread surface light, 3200K-5600K adjustable, 100W power, 2500Lux @ 1 meter, DMX control

  • S-2420C

    40W Bi-color SMD Soft Panel LED light

    160 edge mounted LEDs, soft and non-glaring, 3200K-5600K continuously adjustable, 623Lux @ 1 meter.

  • S-2410C

    60W Bi-color SMD Soft Panel LED light

    240 edge mounted LEDs, soft and non-glaring, 3200K-5600K continuously adjustable, 1065Lux @ 1 meter.
