› 300W ultra bright COB LED light
› 20°-70° Spot/Flood adjustable
› 3000K-8000K continuously adjustable
› 0-100% flick-free dimming
› Super high CRI Ra 95, TLCI 95
› DMX512 controlled color and dimmer
› LCD display color and dimmer value
› Silent mode by fans switching off
› LED overheat detection and protection
› 4-leaf metal barn doors
› Strong all-metal housing

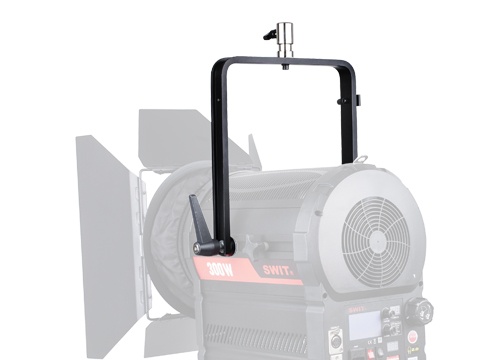

› U-shape support and lighting tripod mount

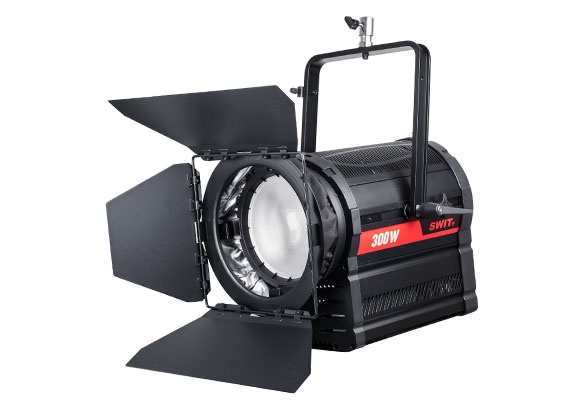

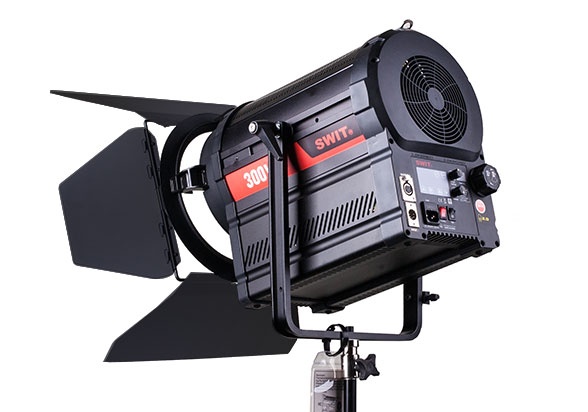

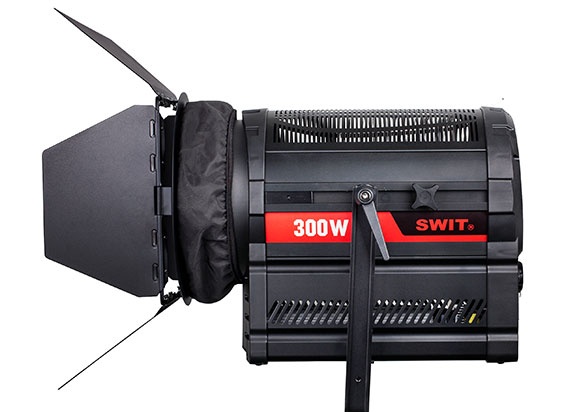

300W LED Spot Light
Ultra-bright and long-life
S-2330 is a studio LED spot light, with Chip-on-board LEDs of
50,000 hours lifetime, and generates 300W light output,
which is an ideal light source for broadcast studio and field
video productions.
Spot /Flood Adjust
20° - 70° beam angle
S-2330 outputs 20° - 70° beam angle by adjust-
ing position of the LED board, and 0-100%
non-flickering dimmable.
Bi-color temperature
3000K-8000K continuously adjustable
S-2330 LED board alternated with 3000K and 8000K LEDs, and the output color temperature can be continuously adjustable
between 3000K and 8000K.
High Color Reveal Ability
CRI Ra 95; TLCI 95
CRI (Color Rendering Index) is a measure of the ability of a
light source to reveal the colors of various objects faithfully
in comparison with a natural light source. And TLCI
(Television Lighting Consistency Index) is special for the
color reveal ability by camera sensor. Max value 100.
The normal LED light has 80-85 CRI or TLCI, while S-2330
offers the super high CRI at 95 and TLCI at 95, and will not
lose the object original colors.
DMX512 Control
Dimmer and Color temperature
S-2330 adopts standard 5-pin DMX in/out port, supports DMX512
protocol, and adjusts dimmer and color temperature by DMX
controller.
The dimmer and color temperature occupy 1 DMX address
respectively.

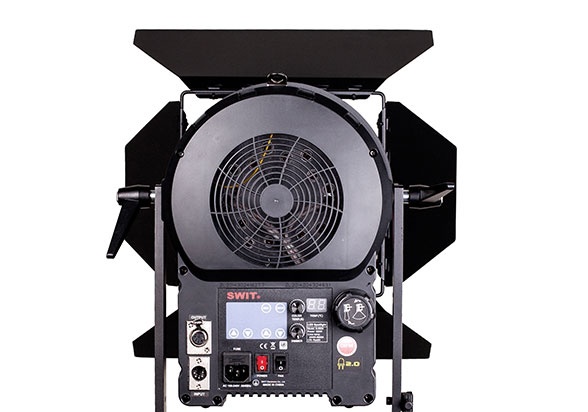

LCD screen display
Dimmer / color temperature value
The rear LCD screen can display the current dimmer
percentage, color temperature value, and set DMX
address, supports touch control to adjust and set.
Silent Mode
Switch off fans
S-2330 adopts silent fans to radiate heat, which will not affect
normal shooting environment to record audio.
While in strictly silent required broadcast environment, S-2330 can
be switched to "Silent Mode" to turn off the fans. Anyway, during
the Silent Mode running, when the light detected temperature over
75 degree, it will be switched off automatically to pretect the LED.
Sleep Mode
Quick recover brightness
S-2330 supports “Sleep Mode”: you can switch off the
light by pressing the DIMMER knob, to enter Sleep
Mode. And press the DIMMER knob again; the S-2330
can be quickly light up to the previous dimmer value.

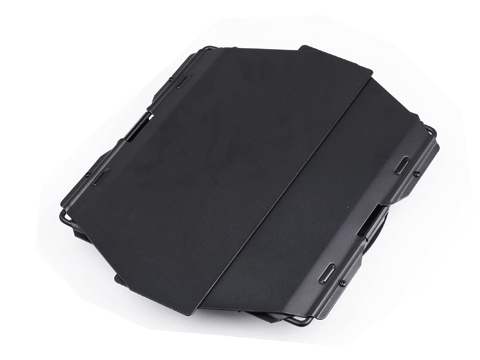

4-leaf Metal Barn Door
With black-out cloth

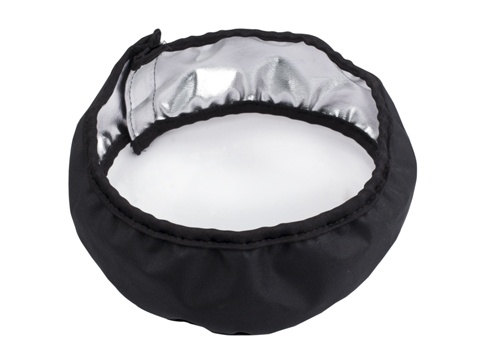

S-2330 is equipped with 4-leaf metal barn
doors, dismountable and rotatable. Mean-
while, the light provides a special black-out
cloth to prevent the light leakage.
Beam angle | 20°- 70° |
Max illuminance | 3m: Spot 5940Lux,Flood 913Lux |
5m: Spot 2139Lux,Flood 364Lux | |
7m: Spot 1090Lux,Flood 193Lux | |
Color temperature | 3000K~8000K |
CRI | ≥95 |
TLCI | ≥95 |
Power | 300W |
Working voltage | AC 100-240V 50/60Hz |
Dimensions | 490×500×400mm |
weight | 11.1kg |
