› Li-ion, 14.4V, 146Wh large capacity
› D-tap output socket
› 4-level LED power indicator
› Gold mount type connection
› 0.8m drop-off proof
› Multiple circuit protections

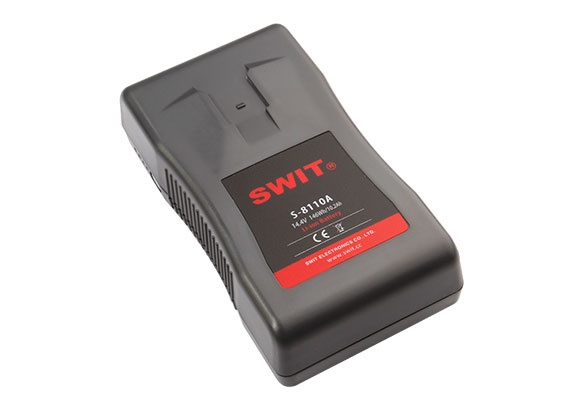

Gold Mount Camera Battery
S-8110A is the AntonBauer gold mount rechargeable Li-ion
battery pack for professional video cameras.
146Wh / 10.2Ah High Capacity
Consists of 16pcs 18650 battery cells, and reaches
146Wh/10.2Ah high capacity.
Run approx 4 hours for normal 30W ENG cameras.

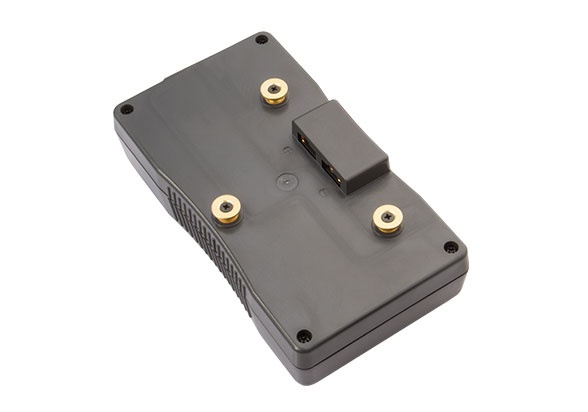

AntonBauer Gold Mount Connection
S-8110A is compatible with AntonBauer Gold mount type
power system and we adopt the high quality connection
bolts that ensure the reliable mounting.

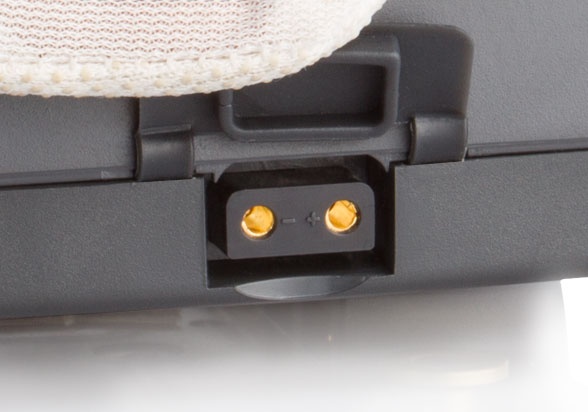

Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the top side of S-8110A
battery, for DC14.4V (Nominate) connection, such as on-camera
lights, monitors, wireless transmitter, etc.
The Max Power from D-tap is 120W, 10A.

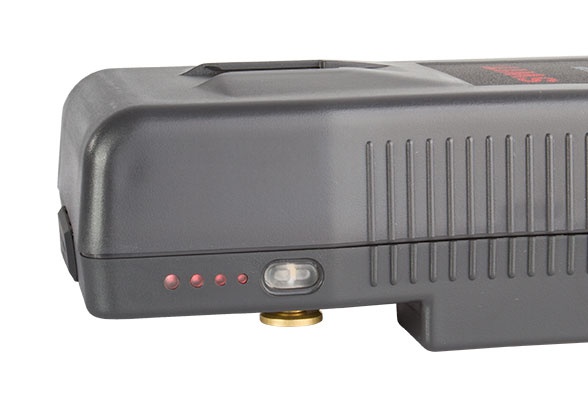

4-level LED Power Indicator
On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view
of capacity before using.
Nominal Voltage | 14.4V |
Capacity | 146Wh/10.2Ah |
Max output power | In total:150W |
| Electrodes:150W,12A | |
| D-tap:120W,10A | |
Mount Type | Gold mount |
Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
Net weight | 940g |
Dimensions | 165×90×53mm |
