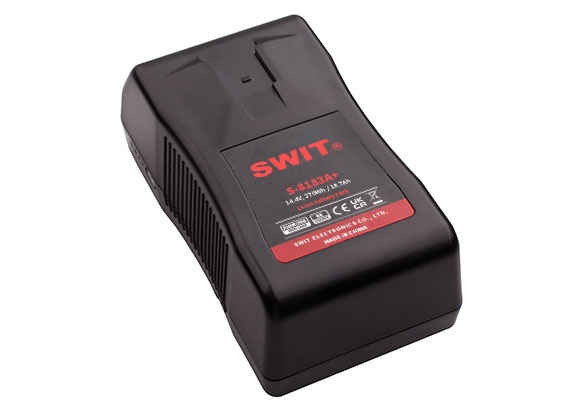

S-8183A+ 270Wh High Load Gold Mount Battery Pack

› High-load Li-ion cells

› At east 250W, 20A constant load

› 14.4V, 270Wh capacity

› 6A super fast charging

› D-tap output socket

› 4-level LED power indicator

› V-mount connection

› Multiple circuit protections


Features

250W/20A High-Load

Even only 1% capacity remains, S-8183A+ still can output at least 250W/20A high load, for high power equipment like cine cameras and cine lights, and will not reduce battery life during long time high power output.

270Wh High Capacity

Updated from S-8183A, the S-8183A+ provides 270Wh/18.75Ah higher capacity, to prolong the running time on equipments.

6A Fast Charging

S-8183A+ supports 6A fast charging, to save more than 50% charging time, can be charged from 0 to 80% after 2.5 hours, and fully charged within 3.8 hours.

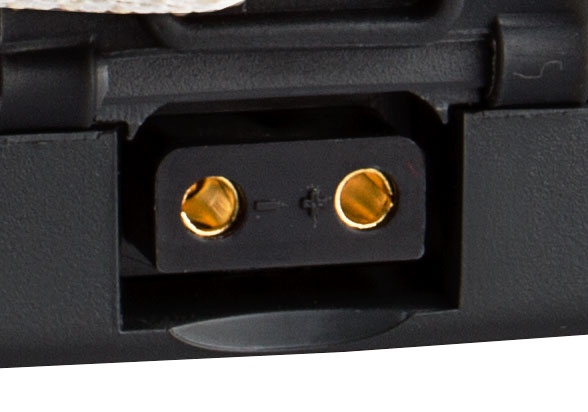

Build-in D-tap DC Output Socket

A D-tap DC output socket is equipped on the top side of S-8183A+ battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc.
The Max Power from D-tap is 120W, 10A.

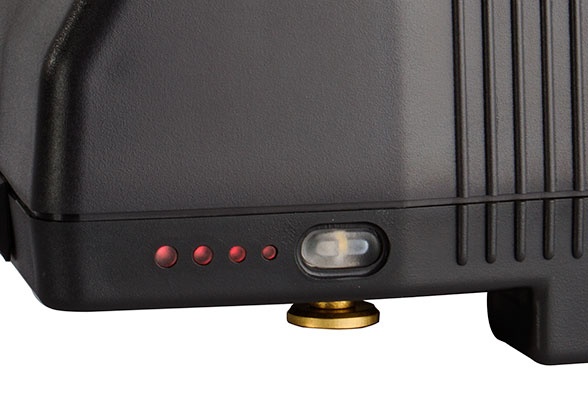

4-level LED Power Indicator

On the side of the battery, there’re 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

无标题文档

Nominal Voltage

14.4V

Capacity

270Wh/18.75Ah

Max output power

In total:250W

Electrodes:250W,20A
D-tap:120W,10A

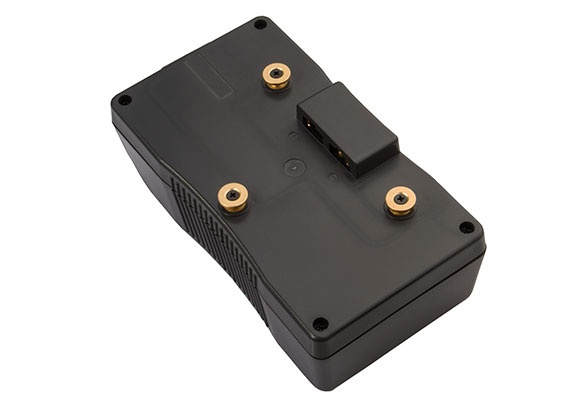

Mount Type

Gold mount

Charging Temperature

0-40°C
     Discharging Temperature-20°C-50°C (Capacity and Max Load may decrease when operating below 0°)

Net weight

Approx 1.3kg

Dimensions

165×90×68mm
Basic Package

MSRP

MSRP

MSRP

  • PC-P430A

    4-ch Gold Mount Fast Charger

    3A×4 fast charging current; AC-DC adapter output, LED charging indicators

    $8222

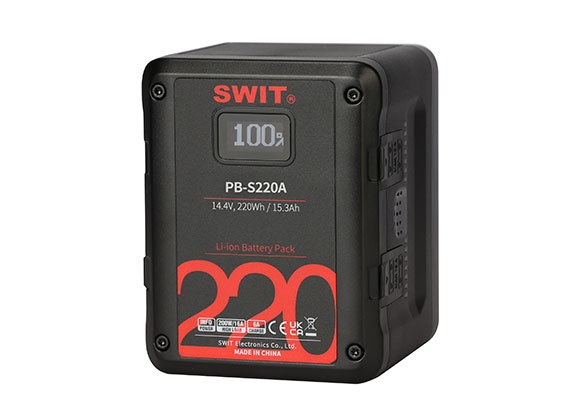

  • PB-S220A

    220Wh Multi-sockets Square Digital Battery

    Compact designed for Cine-cameras, 200W high load, 4x D-tap, 1x USB, OLED displays remaining time

    $8222

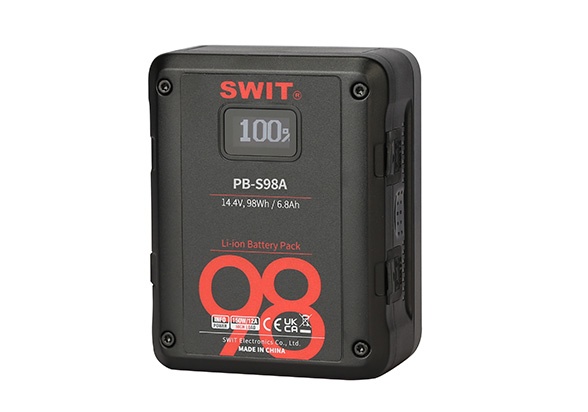

  • PB-S98A

    98Wh Multi-sockets Square Digital Battery

    Compact designed for Cine-cameras, 150W high load, 2x D-tap, 1x USB, LCD displays remaining time

    $8222
  • S-8113A

    160Wh Gold Mount Battery Pack

    High Load Li-ion cells with Max 200W, 16A constant output; D-tap DC output, LED power indicators

    $8222

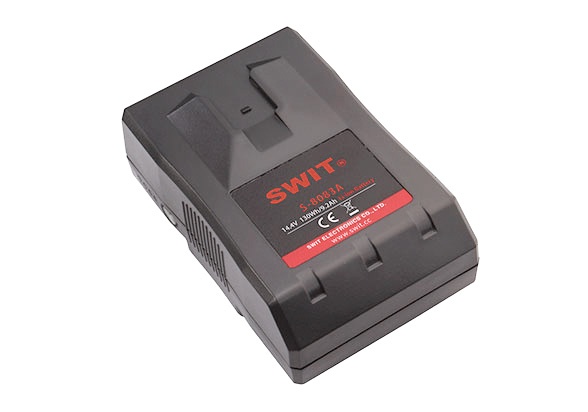

  • S-8083A

    130Wh Gold Mount Battery Pack

    Adpot high performance Li-ion battery cells with intelligent safety protection circuit; D-tap output, LED power indicators

    $8222
  • S-8180A

    220Wh High Load Gold Mount Battery Pack

    High Load Li-ion cells with Max 200W, 16A constant output; D-tap DC output, LED power indicators

    $8222
  • S-8110A

    146Wh Gold Mount Battery Pack

    Adpot high performance Li-ion battery cells with intelligent safety protection circuit; D-tap output, LED power indicators

    $8222

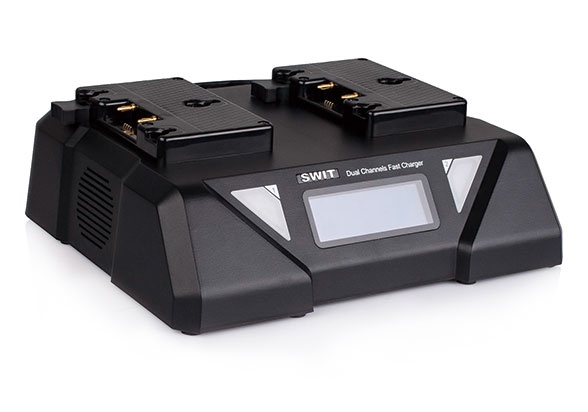

  • S-3812A

    2-ch Gold mount Super Fast Charger

    2-ch simultaneous charging, Max 6A fast charging, support AC-DC and Battery-DC adaptor output, LCD display working status

    $8222

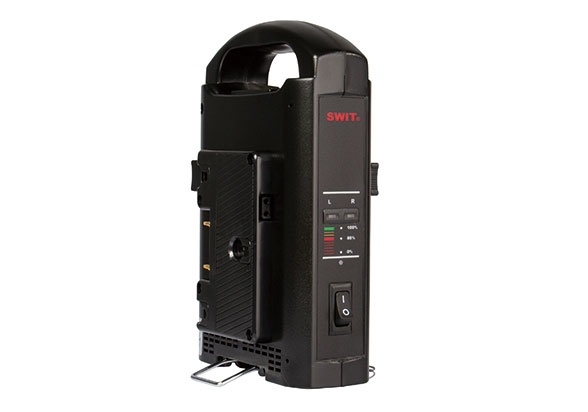

  • SC-302A

    2-ch Gold Mount Battery Charger

    Sequential charging; Portable style

    $8222

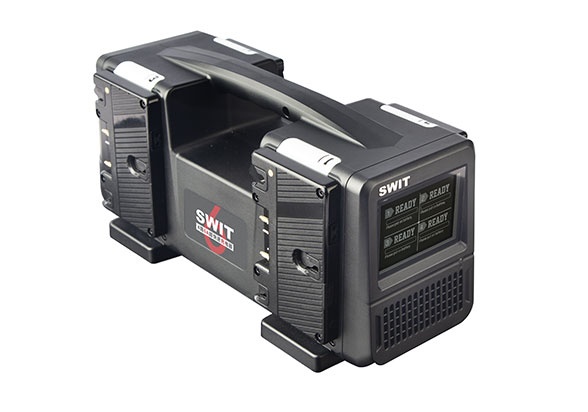

  • PC-P460A

    4x6A Super Fast Gold mount Charger

    4-ch simultaneous charging with 6A super fast charging current; color LCD screen
