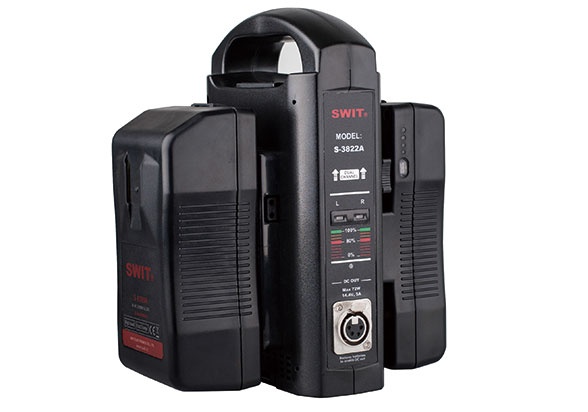

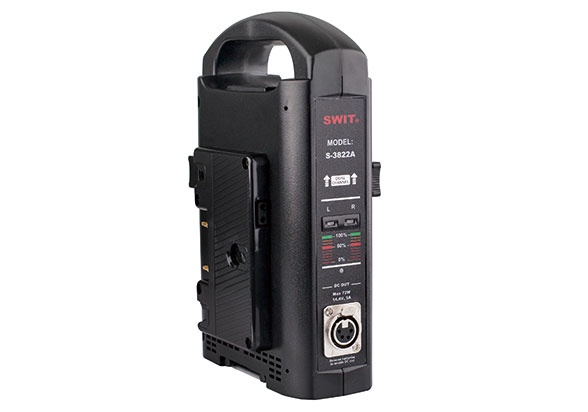

S-3822A 2-ch Gold Mount Fast Charger

›  Charging Gold Mount batteries

›  2-ch simultaneous charging

›  3A charging current per channel

›  LED charging indicators

›  Support AC to 4-pin XLR output

›  Light weight and portable


2-ch Simultaneous Charger

Charging current: 3A per channel

The portable charger S-3822A can charge 2 Gold mount batteries simultaneously. The charging output is DC 16.8V, 3A×2

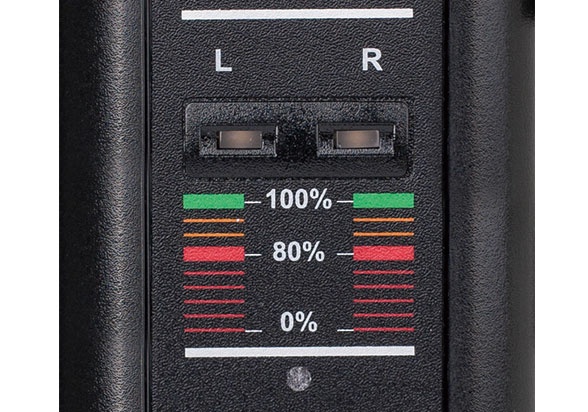

LED Charging Indicators

S-3822A has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colors:
Display Red: Battery is charging, capacity below 80%;
Display Yellow: Battery is charging, capacity above 80%;
Display Green: Charging finished.

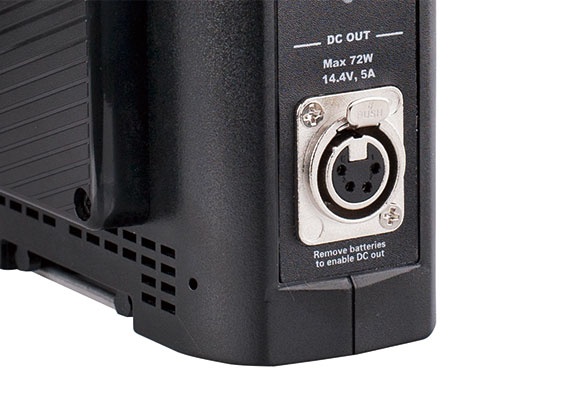

AC-DC Adapting Output

S-3822A has a 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 XLR female to male cable (optional purchase), the S-3822A can be used as AC-DC adaptor of DC 15V, 6A, 90W output.
Please note the AC-DC adapting output will not work when battery is charging.


100~240VA, 50/60Hz

Power consumption

Max 136W

Charging output

DC 16.8V, 3A×2-ch

Adapting output

DC 15V, 6A

Working temperature


Working humidity




Net weight

Approx. 1.0kg
Basic Package

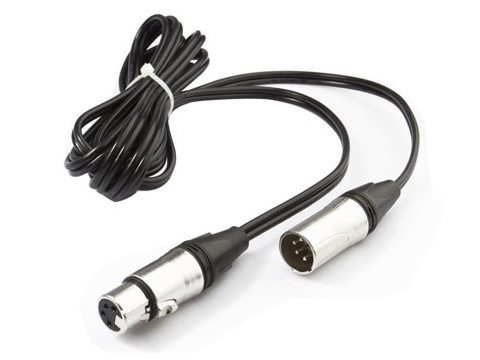

  • S-7102

    4-pin XLR female to male cable, for 4-pin DC adapting output
