◆ 14.4V nominal voltage Li-ion battery
◆ Compatible with SONY BP-U batteries
◆ Display remaining power info in camera
◆ 98Wh / 6.8Ah capacity
◆ Built-in 14.4V D-tap output / Charging input
◆ Built-in 5V/2A USB output
◆ 4-level LED power indicator
◆ Multiple circuit protections
SONY BP-U type Battery
LB-SU98 is the replacement battery for Sony
BP-U60, compatible with SONY Camcorder PXW-FX9 / FS7 / FS5, PXW-Z280 / Z190 / X280.
98Wh / 6.8Ah High Capacity
With 14.4V nominal voltage, the LB-SU98 has 98Wh /
6.8Ah capacity, and can run approx. 3 hours on SONY
PXW-FX9 camera.

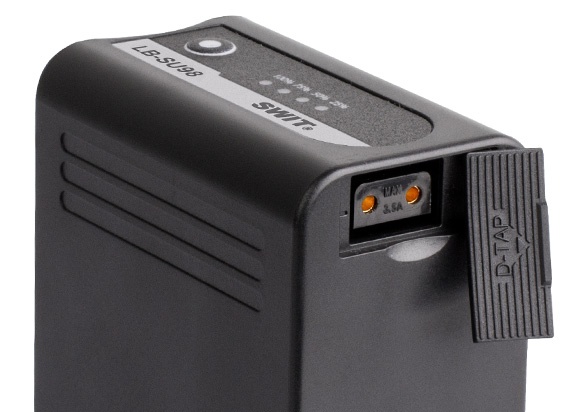

Built-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the side of LB-SU98
battery, for DC14.4V (Nominate) connection. You can connect
on-camera LED light, monitor or wireless transmitter on the
D-tap socket, and get power simultaneously with camera.
The Max power from D-tap is 70W, 6A.
The D-tap socket can also be used as charging input, by SWIT
portable charger PC-U130B/B2.
Built-in 5V/2A USB Socket
Connect your USB devices like smart phone or pad to the USB socket of LB-SU98, press the power check button, and
then the battery will start to output 5V/2A power to charge
your devices.
LED Power Indicator
The LB-SU98 battery has the 4-level LED power
indicators to check the battery remaining capacity.
You can get a quick view of capacity before using.
The power check button can also be used to trigger
USB charging.
Easy Charging
The LB-SU98 can be charged on SWIT 2-ch charger S-3602U or 4-ch charger LC-D421. And you can also use SWIT PC-U130B/B2 Portable
D-tap Charger for LB-SU98.
By S-3602U/LC-D421 will take about 4 hours and 30 minutes to
charge from empty to 100%.
By PC-U130B/B2 will take 2 hours and 50 minutes to fully charge.
Nominal Voltage | 14.4V |
Capacity | 98Wh, 6.8Ah |
Max output power | Total: 70W, 6A |
Pins: 70W, 6A | |
| D-tap: 70W, 6A | |
| USB: 5W, 2A | |
Compatible cameras | SONY PXW-FX9 |
| SONY PXW-Z280, Z190 | |
| SONY PXW-FS5, FS7 | |
SONY PXW-X280 | |
Dimension | 70×42×96mm |
| Charging Temperature | 0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
Net weight | Approx 464g |
